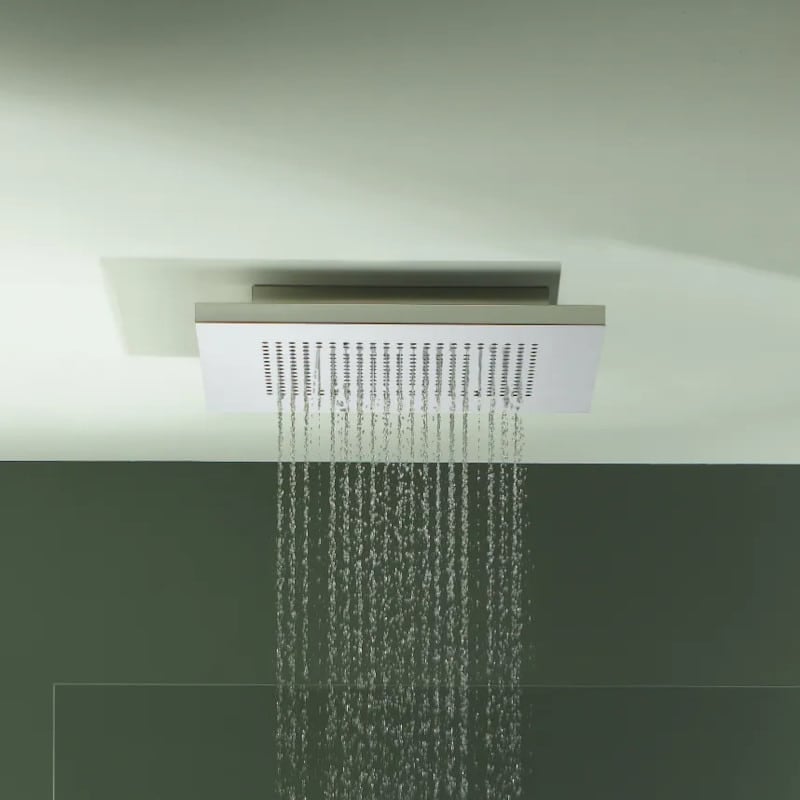

BIG RAIN Rain Panel for Ceiling Installation or Ceiling Substructure Installation 600 x 480 mm | Dornbracht | Imo | Stainless Steel

Name: Flush Bathrooms
Price range: $$$

Product Code: 41400979-85

Size: Cover plate, stainless steel 600 x 480 mm

Also available in the following colours:

Colour

#eaeaea

#e4e4e2

Checking stock…

Stock lead time: 6 - 7 Weeks

Total Price (Incl. VAT):

R112,888.82

Add to wishlist

Description

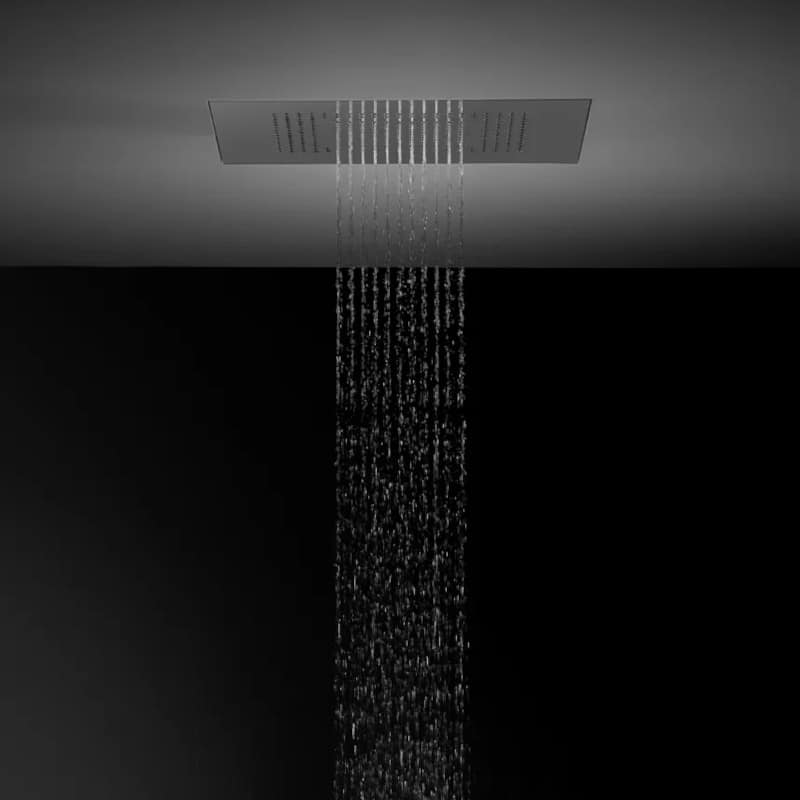

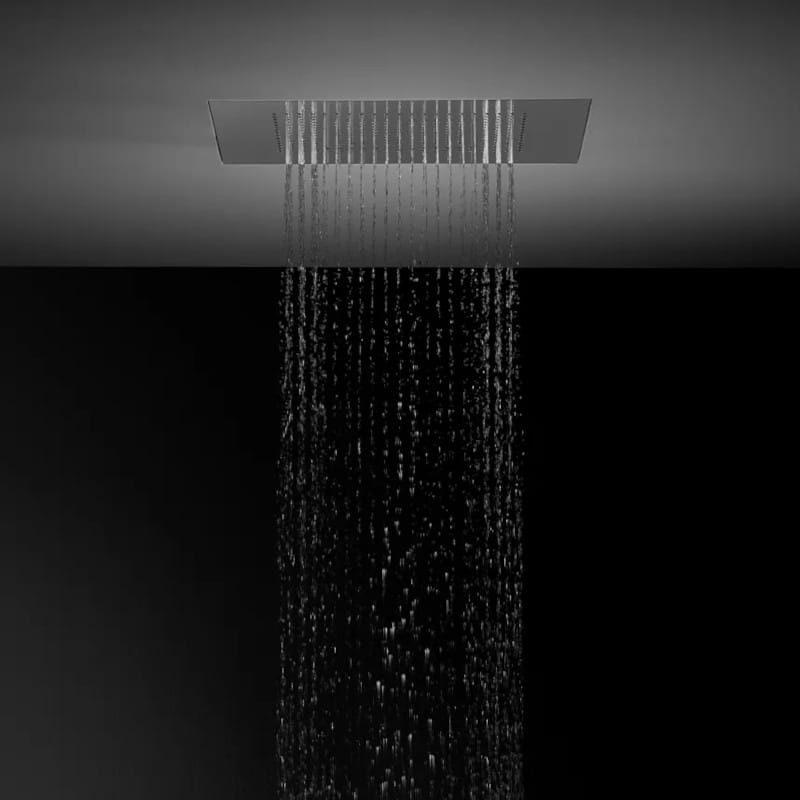

Rain panel with 2 different spray modes
PURIFY RAIN, 200 x 160 mm, max. flow rate 23.5 l/min (at 3 bar)
FULL RAIN, 360 x 280 mm, max. flow rate 13.6 l/min (at 3 bar)
Cover plate, stainless steel 600 x 480 mm
2x flexible connection hose 1/2″ – female thread
4x mounting pin
Pre-fitted stainless steel enclosure
With anti-scale system
Technical data:
Minimum flow rate 25 l/min (both rain modes together)

Flow at 3bar flow pressure in conjunction with xTOOL: 39l/min
Minimum flow pressure 2 bar
Max. flow pressure 4 bar
Weight: 12kg
Technical data:
Plumbing:
Recommended water hardness: 6-7 °dH – if the water is harder, integrate a water softener that uses the ion exchange principle into the feed pipe.
For choosing the drainage, taking into consideration the discharge of all the products in the shower, the specific demand needs to be assessed. Recommendation: Floor drain (connected rating) = 1l/sec, drainage rate DN 50
Feed pipe (hot/cold): 2x DN 20
For the optimum choice of hot water storage device – taking into consideration additional drawing-off points and the frequency with which BigRain is used – the specific demand needs to be assessed.

Additional information

Colour	Polished Stainless Steel
